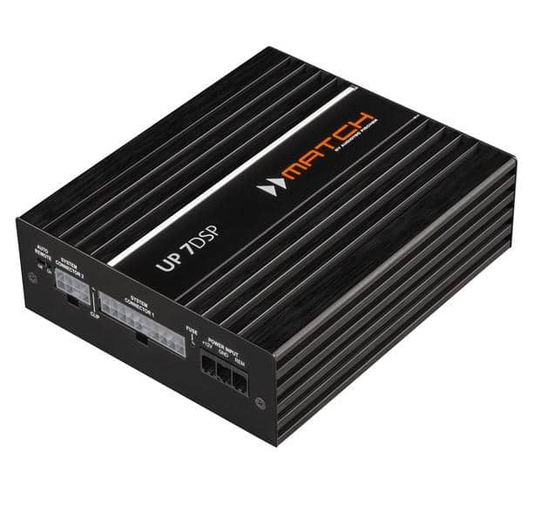

Match UP 7DSP vahvistin

Match UP 7DSP vahvistin autoon Match 7-kanavainen vahvistin sisäänrakennetulla DSP:llä. Included pig-tail cable harness for universal installations Output power RMS / max.x0001 - @ 4 Ohms_x0001_5 x 65 / 130 Watts (Front / Rear / Center channels) - Subwoofer output @ 2 Ohms_x0001_2 x 160 / 320 Watts Amplifier technology_x0001_Class HD 4 x Highlevel speaker input 1 x Optical SPDIF (12 - 96 kHz) 1 x MEC 1 x Remote In Input sensitivity_x0001_Highlevel 2.0 - 8.3 Volts Input impedance highlevel_x0001_13 Ohms 7 x Speaker output 1 x RCA output 2 x Remote Out Output voltage RCA_x0001_3 Volts RMS Frequency response_x0001_20 Hz - 22,000 Hz DSP resolution_x0001_64 Bit DSP power_x0001_295 MHz (1.2 billion MAC operations/second) Sampling rate_x0001_48 kHz DSP type_x0001_Audio signal processor A/D-converters: BurrBrown D/A-converters: BurrBrown Signal-to-noise ratio digital input_x0001_105 dB (A-weighted) Signal-to-noise ratio analog input_x0001_103 dB (A-weighted) Distortion (THD)x0001 0.03 % Damping factor_x0001_ 100 Operating voltage_x0001_10.5 - 16 Volts (max. 5 sec. down to 6 Volts) Current draw_x0001_450 mA Max. remote output current_x0001_500 mA Fuses_x0001_2 x 25 A LP-Mini-fuse (APS) Class HD technology with dynamically controlled power supply ADEP.3 circuit Start-Stop capability Control Input ( URC, Director ) USB ( for PC control only ) MEC slot Auto Remote switch Galvanically isolated Line Out Dimensions (H x W x D)_x0001_46 x 130 x 153 mm
